PAFEC-VibroAcoustics - 3D Transient analysis of a rectangular horn

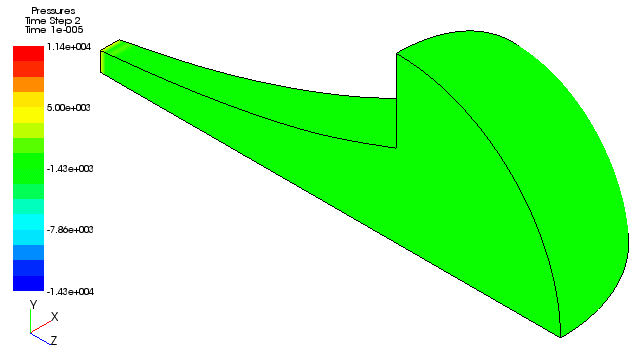

Animated pressure field from time 0.0 to 0.001 secs

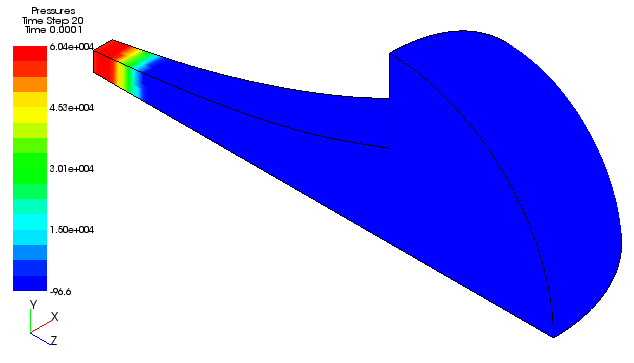

Acoustic pressures at time = 0.0001 secs (step 20)



Acoustic pressures at time = 0.0005 secs (step 100)

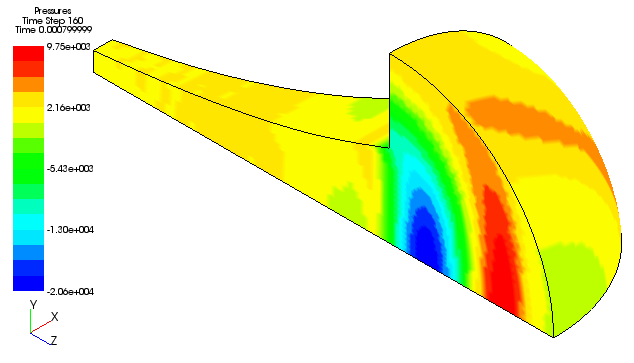

Acoustic pressures at time = 0.0008 secs (step 160)

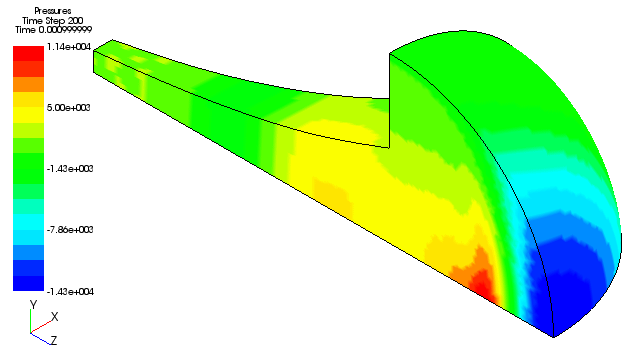

Acoustic pressures at time = 0.001 secs (step 200)
