PAFEC-EHL - Example Solution: Analysis of a Journal Bearing (smooth)

Pressures calculated by the PAFEC-EHL analysis of the oil film may be saved and subsequently back-substituted into the PAFEC-FE analysis of the bearing housing. Plots and graphs of deformations and stresses may then be viewed.

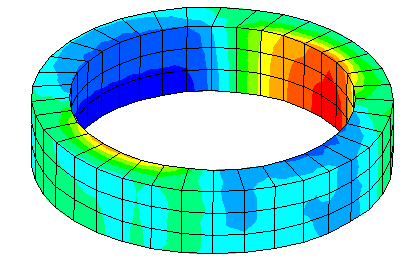

Maximim principle stress for load step 55 in bearing housing elements adjacent to the oil film.

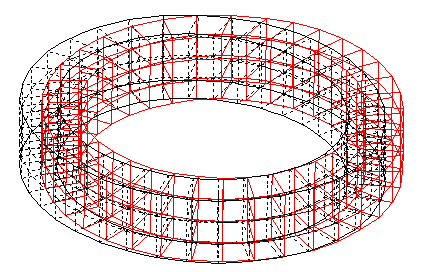

Deformation of housing elements adjacent to the oil film at load step 55.
